Size: 300mm*205mm

Light material: aviation aluminum, optical lens, stainless steel fasteners, waterproof silicone ring

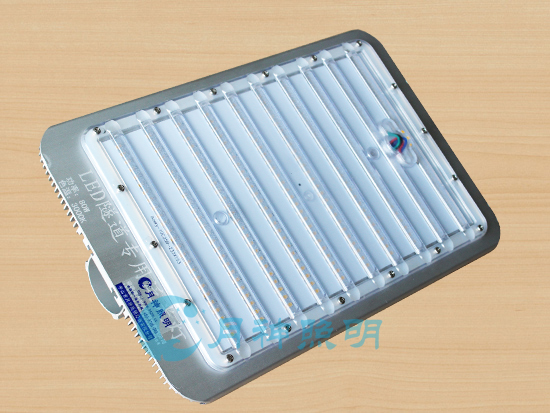

Light body structure: integrated radiator piece, pure plane design, super light, more suitable for tunnel construction lighting

LED chip: Taiwan Jingyuan

Specification: SMD patch 5730 beads

Service life: more than 50 thousand hours

Driven placement: rear (fixed to the rear of the lamp body on the back of the dedicated support)

Driving mode: high power factor isolated constant current drive

Power factor: 0.96

Use voltage: AC85~260V (wide voltage)

Power: 80W

Energy efficiency: more than 75%

Color index: 80Ra

Flux value: 120Lm/W

Color: white, warm white (color 1800-6500K)

Start time: instant start

Installation height: 3-8 M

Wind resistance: 60 m / sec

Light emitting angle: 60*120 degrees (long form with light, more suitable for long and narrow road tunnel lighting)

Protection level: IP65 (waterproof, suitable for outdoor)

Installation way: the bracket is installed (light body comes with U type bracket).

Temperature: -30 ~ 60

Features: LED tunnel lamp with high efficiency and energy saving, high brightness, no UV, no flicker, no light pollution. Pure color, solid light source, not afraid of shock and fall, etc.. Aluminum shell, baking powder, acid and alkali resistant, high resistance to ultraviolet radiation. Isolated constant current drive, long service life. Comes with mounting bracket, easy to install and debug, looking up angle adjustable. Maintenance free during use.

Application in highway tunnel, railway tunnel, highway tunnel, city underground tunnels, underground parking lot, workshop, factories, docks, square, billboards, lighting, protection grade IP65, waterproof and dustproof, damp tunnel, indoor and outdoor can be used.
