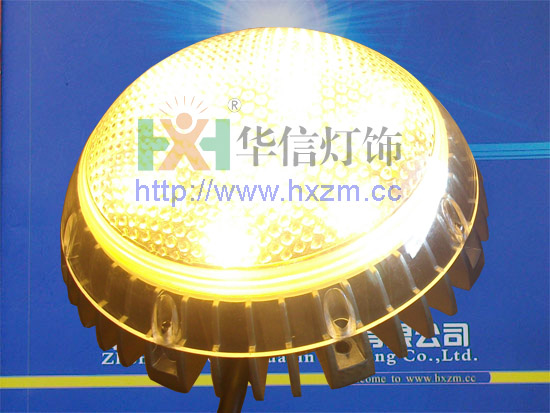

Name: HX-D-14 (7W yellow light)

Explain：

Lamp body size: diameter 120mm, high 60mm

Light body material: die casting aluminum, imported PC surface

Light body features: LED special point light source light body, beautiful appearance, strong and durable

PCB material: high thermal conductivity aluminum substrate

Light source: high brightness LED

LED number: 7 (high power 1W/)

LED chip: Taiwan epstar chip

Service life: more than 40 thousand hours (maintenance free)

Drive mode: built in isolation type constant current drive

Power factor: 0.9

Use voltage: AC220V (can be customized low voltage 24V or 12V)

Power: 7W

Energy efficiency: more than 75%

Flux values: 300Lm (yellow)

Light emitting color: yellow light (can be customized red, yellow, blue, green, white, warm white, color and other colors)

Visual range: 2 km

Light emitting angle: 120 degrees

Lens material: optical PMMA

Installation method: clear assembly

Protection level: IP65 (waterproof, suitable for outdoor)

Applicable temperature: ~+60 C -30 C

Applications: outdoor landscape lighting, building and bridge lighting

Features: LED point light source with high efficiency and energy saving, high brightness, no UV, no flicker, no light pollution. Pure color, solid light source, not afraid of vibration, impact and fall, etc.. Aluminum shell, acid resistance and alkali resistance, high resistance to ultraviolet radiation. Isolated constant current drive, long service life. Easy to install and debug. Maintenance free during use. Application: suitable for outdoor environment, waterproof and dust. The application in building, overpass, railings and other lighting or outline.
