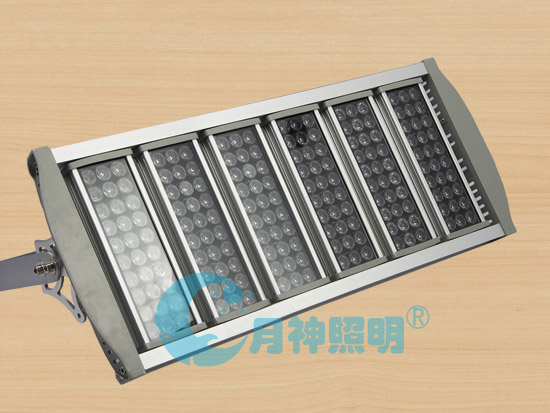

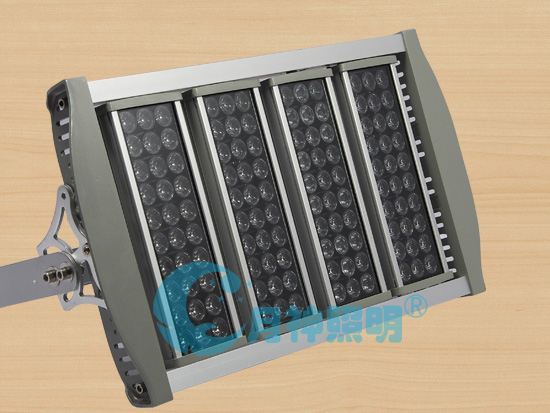

Name: transverse distribution of light LED tunnel lamp with peanuts lens

Size: 430mm*305mm

Light material: aviation aluminum, surface anti glare glass, tempered stainless steel fasteners, waterproof silicone ring

The lamp body features: rectangular aluminum lamp body with peanuts lens, the transverse light tunnel is within the narrow road; with tunnel lamp special anti glare glass, no glare, no frost

Outlet: high temperature resistant silicone wire, with PE terminal

Wind resistance: 90 m / s wind speed

Surface treatment: oxidation, corrosion protection

Lamp chip: genuine United States Puri or Taiwan Jingyuan

Service life: more than 50 thousand hours

Driven placement: rear (fixed to the rear of the lamp body on the back of the dedicated support)

Driving mode: high power factor isolated constant current drive

Power factor: 0.96

Use voltage: AC85~260V (wide voltage)

Power: 70W

Energy efficiency: more than 75%

Color index: 80Ra

Flux value: 8400Lm

Light: 5000 hours of less than 3%, less than 25% of the whole life

Color: White (can be customized a variety of color)

Installation height: 3-9 M

Light emitting angle: 45*140 degrees

Protection level: IP65 (waterproof and moisture proof)

Installation way: the bracket is installed (light body comes with U type bracket).

Temperature: -30 ~ 60

Features: high efficiency and energy saving, LED tunnel lamp, high brightness, no UV, no flicker, no light pollution. Pure color, solid light source, not afraid of shock and fall, etc.. Aluminum shell, baking powder, acid and alkali resistant, high resistance to ultraviolet radiation. Isolated constant current drive, long service life. Comes with mounting bracket, easy to install and debug, looking up angle adjustable. Maintenance free during use.

Applicable occasions: applicable to all kinds of tunnels, underground parking lots, workshops, factories and mines, docks, squares, billboards and other lighting, protection class IP65, waterproof and dust, outdoor, indoor can be used.
