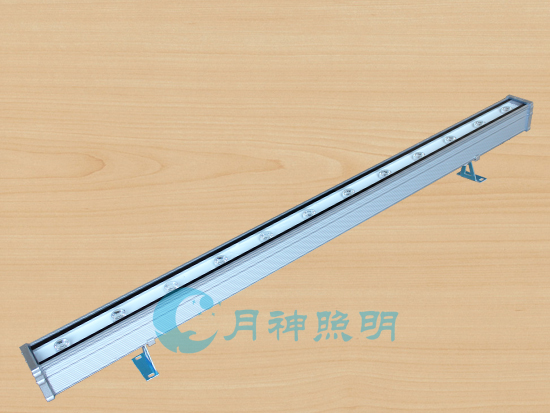

Name: LED wash wall lamp (also known as line lights, linear cast light lamps, etc.)

Lamp body size: 1000mm*40mm*50mm (can be customized for any non-standard length)

Light body material: aluminum, tempered glass, stainless steel fasteners with heat sink

Surface treatment: anodized (silver) or electrostatic spray (color optional)

PCB material: high thermal conductivity aluminum substrate

Light source: imported high brightness LED (light emitting diode)

LED number: 12 (high power 1W/, 110Lm/W)

LED chip: Taiwan epstar chip

Service life: more than 50 thousand hours (maintenance free)

Drive mode: built in isolation type constant current drive module (active PFC circuit design)

Power factor: 0.9

Use voltage: wide voltage AC90V-AC260V (can be customized low voltage 24V)

Output current: constant current 300mA

Power: 12W (can be customized to a variety of power)

Energy efficiency: more than 75%

Color index: 80

Flux value: 2600Lm

Light emitting color: white light (can be customized to other colors, such as red, blue, green, yellow, white, warm white, color, etc.)

Color temperature: 1800K~6000K optional

Projection distance: 12 meters (30 degrees)

Wall height: 3-5 m

Light emitting angle: 15 degrees -60 degrees (conventional 45 degrees)

Looking up angle: adjustable

Lens material: imported optical PMMA (optical)

Mounting bracket: belt chute, movable and adjustable elevation angle

Installation method: bracket installation (aluminum alloy stent, expansion screws fixed to the mounting surface can be)

Protection grade: IP65 (special waterproof pad, plus special lighting component silicone sealing, waterproof and dustproof, suitable for outdoor environment)

Applicable temperature: ~60 C -35 C

Warranty: three years warranty, life-long maintenance

Features: LED wash wall lamp has a linear light characteristics and surface light source characteristics, rich colors, is a new high-end outdoor lighting lighting products. LED light source, high efficiency and energy saving, high brightness, no UV, no flicker, no uniform light spot, small angle light wall or other surface to be illuminated, no light pollution. Solid light source, shock proof and explosion proof, good safety. Aluminum shell, anodic oxidation or electrostatic spray treatment, acid resistance and alkali resistance, high resistance to ultraviolet radiation. Isolated driving power supply, active PFC circuit design, constant current output, super energy saving and extended service life. Comes with mounting bracket, easy to install and debug, looking up angle adjustable. Maintenance free during use.

Application: suitable for outdoor environment, waterproof and dust. The application in building lighting, overpass, city square, sculpture park, lighting, stage lighting, advertising lighting, landscape lighting, road lighting, trees, green belt and lighting.
